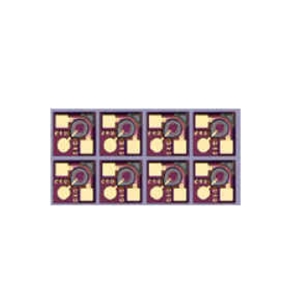

PDC-13D10G

Photodiode by Lasermate Group
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lasermate Group.

The PDC-13D10G from Lasermate Group is a Photodiode with Wavelength Range 1310 to 1550 nm, Bandwidth 10 GHz, Capacitance 0.22 to 0.3 pF, Dark Current 0.2 to 1 nA, Responsivity/Photosensitivity 0.8 to 1.1 A/W. More details for PDC-13D10G can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PDC-13D10G
  • Manufacturer
    Lasermate Group
  • Description
    InGaAs PIN photodiode from 1310 to 1550 nm

Applications

  • Application
    High speed data communication, Gigabit Ethernet, Fiber channel

General Parameters

  • Breakdown Voltage
    25 to 40 V
  • Forward Current
    10 mA
  • Input Power
    2 mW (optical)
  • Module
    No
  • Package
    Chip, Die
  • Package Type
    Chip, Die
  • Photodetector Type
    PIN
  • Operation Mode
    Photoconductive
  • Wavelength Range
    1310 to 1550 nm
  • Photodiode Material
    InGaAs
  • Reverse Current
    2 mA
  • Reverse Voltage
    20 V
  • Bandwidth
    10 GHz
  • Capacitance
    0.22 to 0.3 pF
  • Dark Current
    0.2 to 1 nA
  • Responsivity/Photosensitivity
    0.8 to 1.1 A/W

Physical Properties

  • Active Area Diameter
    50 µm

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C
