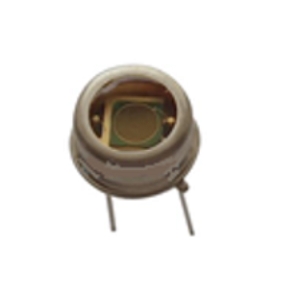

PDT-F05A2500-SIB2

Photodiode by Lasermate Group
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lasermate Group.

The PDT-F05A2500-SIB2 from Lasermate Group is a Photodiode with Wavelength Range 400 to 1100 nm, Capacitance 20 to 90 pF, Dark Current 0.5 to 200 pA, Responsivity/Photosensitivity 0.07 to 0.59 mA/mW, Active Area Diameter 8.26 mm. More details for PDT-F05A2500-SIB2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PDT-F05A2500-SIB2
  • Manufacturer
    Lasermate Group
  • Description
    Silicon PIN photodiode from 400 to 1100 nm

Applications

  • Application
    Optical sensor, Optical power meter, Spectrophotometry/CT scan, Industrial automatic control, IR/laser light monitoring, Fluorescence detector, Medical equipment

General Parameters

  • Breakdown Voltage
    70 V
  • Configuration
    Single
  • Forward Current
    13 mA
  • Module
    No
  • Package
    TO-5
  • Package Type
    TO-Can
  • Photodetector Type
    PIN
  • Operation Mode
    Photoconductive
  • Wavelength Range
    400 to 1100 nm
  • Photodiode Material
    Silicon
  • Response Time :
    5 ns
  • Reverse Voltage
    20 V
  • Saturation Power
    20 mW
  • Shunt Resistance
    20 GOhms
  • Supply Voltage
    0 to 15 V
  • Capacitance
    20 to 90 pF
  • Dark Current
    0.5 to 200 pA
  • Responsivity/Photosensitivity
    0.07 to 0.59 mA/mW

Physical Properties

  • Active Area
    2.5 x 2.5 mm
  • Active Area Diameter
    8.26 mm

Temperature

  • Operating Temperature
    -45 to 85 Degree C
  • Storage Temperature
    -45 to 100 Degree C
