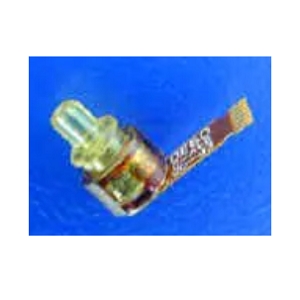

RLC-P85P8106-3V

Photodiode by Lasermate Group
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lasermate Group.

The RLC-P85P8106-3V from Lasermate Group is a Photodiode with Wavelength Range 770 to 860 nm, Bandwidth 7 GHz. More details for RLC-P85P8106-3V can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RLC-P85P8106-3V
  • Manufacturer
    Lasermate Group
  • Description
    GaAs PIN photodiode from 770 to 860 nm

Applications

  • Application
    Optimized for fiber optic application, Suitable for short wavelength 10.3125Gbps application

Connections & Interface

  • Optical Connector
    LC Type

General Parameters

  • Cut-Off Frequency
    30 kHz
  • Detector Sensitivity :
    -13.5 dBm
  • Impedance
    50 Ohms
  • Module
    No
  • Package
    Connectorized
  • Package Type
    Connectorized
  • Photodetector Type
    PIN
  • Operation Mode
    Photovoltaic
  • Wavelength Range
    770 to 860 nm
  • Photodiode Material
    GaAs
  • Power Supply
    3 to 3.6 V
  • Rise/Fall Time
    50 ps
  • Saturation Power
    0 dBm
  • Supply Current
    34 to 45 mA
  • Bandwidth
    7 GHz
  • Voltage Responsivity
    0.2 to 1 mV/µW

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C
