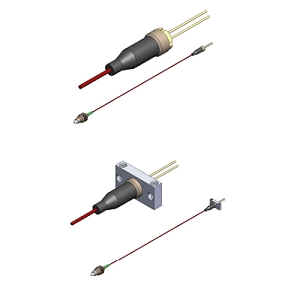

PDI-40-P10-4G-K

Photodiode by LasersCom
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to LasersCom.

The PDI-40-P10-4G-K from LasersCom is a Photodiode with Wavelength Range 850 to 1700 nm, Bandwidth 4 GHz, Capacitance 0.35 to 0.8 pF, Dark Current 0.02 to 0.08 nA, Responsivity/Photosensitivity 0.95 to 1.1 A/W. More details for PDI-40-P10-4G-K can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PDI-40-P10-4G-K
  • Manufacturer
    LasersCom
  • Description
    InGaAs PIN photodiode from 850 to 1700 nm

Applications

  • Application
    Optical fiber communication systems

Connections & Interface

  • Optical Connector
    FC/APC, FC/UPC, SC/APC, SC/UPC

General Parameters

  • Forward Current
    10 mA
  • Input Power
    10 mW
  • Module
    No
  • Package
    coaxial
  • Package Type
    Coaxial
  • Photodetector Type
    PIN
  • Optical Return Loss
    25 to 50 dB
  • Operation Mode
    Photoconductive
  • Wavelength Range
    850 to 1700 nm
  • Photodiode Material
    InGaAs
  • Reverse Voltage
    20 V
  • Supply Voltage
    3 to 5 V
  • Bandwidth
    4 GHz
  • Capacitance
    0.35 to 0.8 pF
  • Dark Current
    0.02 to 0.08 nA
  • Responsivity/Photosensitivity
    0.95 to 1.1 A/W

Temperature

  • Operating Temperature display
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
