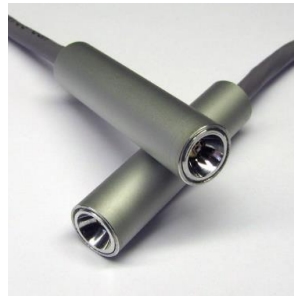

Lms36PD-05-R-PA

Photodiode by LED Microsensor NT
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LED Microsensor NT.

The Lms36PD-05-R-PA from LED Microsensor NT is a Photodiode with Wavelength Range 2.2 to 3.4 µm, Capacitance 800 to 1100 pF, Dark Current 300 to 1000 µA, Responsivity/Photosensitivity 1 to 1.2 A/W, Active Area Diameter 0.5 mm. More details for Lms36PD-05-R-PA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Lms36PD-05-R-PA
  • Manufacturer
    LED Microsensor NT
  • Description
    TO-Can photodiode from 2.2 to 3.4 µm

General Parameters

  • Cut-Off Wavelength
    3.6 to 3.7 µm
  • Detectivity
    4.6 x 109 cm x Hz/W to 8.8 x 109 cm x Hz/W
  • Module
    No
  • Noise equivalent power(NEP) :
    4.8 x 10-12 W/Hz to 9.1 x 10-12 W/Hz
  • Package
    TO-18, TO-5
  • Package Type
    TO-Can
  • Operation Mode
    Photovoltaic
  • Wavelength Range
    2.2 to 3.4 µm
  • Shunt Resistance
    0.2 to 0.5 kOhms
  • Spectral Band
    MIR
  • Capacitance
    800 to 1100 pF
  • Dark Current
    300 to 1000 µA
  • Responsivity/Photosensitivity
    1 to 1.2 A/W

Physical Properties

  • Active Area Diameter
    0.5 mm

Temperature

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    0 to 50 Degree C
