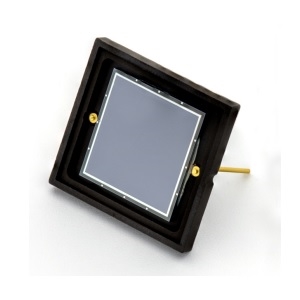

UVG100

Photodiode by Opto Diode Corporation
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Opto Diode Corporation.

The UVG100 from Opto Diode Corporation is a Photodiode with an active area of 100 mm sq and operates at a wavelength from 190 to 400 nm. It has excellent UV responsivity of 0.09 A/W and has a response time of 10 µsec. This photodiode has a capacitance

Product Specifications

View similar products

Product Details

  • Part Number
    UVG100
  • Manufacturer
    Opto Diode Corporation

General Parameters

  • Configuration
    Single
  • Channels
    Single
  • Module
    No
  • Package
    Through-Hole
  • Package Type
    Through-Hole
  • Operation Mode
    Photoconductive
  • Wavelength Range
    190 to 400 nm
  • Reverse Voltage
    5 to 10 V
  • RoHs
    Yes
  • Shunt Resistance
    20 MOhms
  • Spectral Band
    Ultraviolet
  • Capacitance
    1 to 3 nF
  • Responsivity/Photosensitivity
    0.08 to 0.09 A/W
  • Rise Time
    10 µ sec

Physical Properties

  • Active Area
    100 mm2

Temperature

  • Operating Temperature
    -20 to 100 Degree C
  • Storage Temperature
    -20 to 80 Degree C
