FCI-InGaAs-36C

Photodiode by OSI Optoelectronics

Note: Your Quotation Request will be directed to OSI Optoelectronics.

The FCI-InGaAs-36C from OSI Optoelectronics is a Photodiode with Wavelength Range 1310 to 1550 nm, Bandwidth 9 GHz, Capacitance 0.16 to 0.20 pF, Dark Current 0.5 to 2 nA, Responsivity/Photosensitivity 0.75 to 0.85 A/W. More details for FCI-InGaAs-36C can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FCI-InGaAs-36C
  • Manufacturer
    OSI Optoelectronics
  • Description
    10Gbps InGaAs Photodiode

Applications

  • Application
    High Speed Optical Communications, OC-192, Optical Networking, Optical Measurement

General Parameters

  • Breakdown Voltage
    20 V
  • Channels
    Single
  • Module
    No
  • Package
    Chip
  • Package Type
    Chip
  • Operation Mode
    Photoconductive
  • Wavelength Range
    1310 to 1550 nm
  • Photodiode Material
    InGaAs
  • Bandwidth
    9 GHz
  • Capacitance
    0.16 to 0.20 pF
  • Dark Current
    0.5 to 2 nA
  • Responsivity/Photosensitivity
    0.75 to 0.85 A/W
  • Note

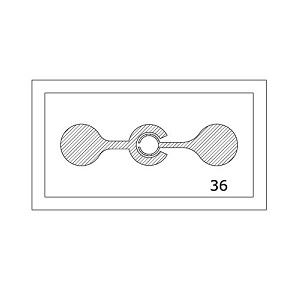

    Chip Size: 450 X 250 µm

Physical Properties

  • Active Area
    0.036 mm x 0.036 mm
