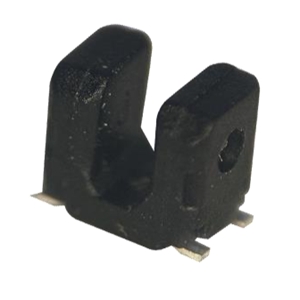

8ITR323S01FB0001

Photointerrupter by Edison Opto
17 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Edison Opto.

The 8ITR323S01FB0001 from Edison Opto is a Photointerrupter with Rise Time 15 µs, Wavelength 940 nm, Power Dissipation 65 to 75 mW, Gap Width 1.1 mm, Fall Time 10 µs. More details for 8ITR323S01FB0001 can be seen below.

Product Specifications

Product Details

  • Part Number
    8ITR323S01FB0001
  • Manufacturer
    Edison Opto
  • Description
    ITR323 SMD type 940nm

Applications

  • Applications
    Digtial Camera, Opto-electronic switch

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Collector-Emitter Saturation Voltage
    0.4 V
  • Rise Time
    15 µs
  • Wavelength
    940 nm
  • Emitter Material
    AlGaAs
  • Power Dissipation
    65 to 75 mW
  • Package Type
    Surface Mount
  • Aperture
    0.3 mm
  • Gap Width
    1.1 mm
  • Chip Material
    AlGaAs, Silicon
  • Emitter-Collector Voltage
    6 V
  • Fall Time
    10 µs
  • On State Collector Current
    0.2 to 1.3 mA
  • Operating Current
    50 mA
  • pb Free
    Yes
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • RoHS
    Yes
  • Collector Current
    20 mA
  • Collector-Dark Current
    100 nA
  • Collector-Emitter Voltage(Vce)
    35 V
  • Forward Voltage
    1.2 to 1.4 V

Environmental Conditions

  • Lead Soldering Temperature
    250 Degree C
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C

Physical Properties

  • Dimension
    3.2 x 2 x 2.7 mm
