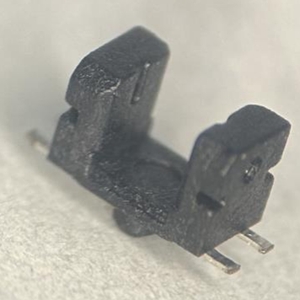

8ITR422S02FB0001

Photointerrupter by Edison Opto
17 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Edison Opto.

The 8ITR422S02FB0001 from Edison Opto is a Photointerrupter with Rise Time 50 to 150 µs, Wavelength 880 to 940 nm, Power Dissipation 65 to 75 mW, Gap Width 2.2 mm, Fall Time 50 to 150 µs. More details for 8ITR422S02FB0001 can be seen below.

Product Specifications

Product Details

  • Part Number
    8ITR422S02FB0001
  • Manufacturer
    Edison Opto

Applications

  • Applications
    Cameras, Encoders, Printers, DVD

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Collector-Emitter Saturation Voltage
    0.15 to 0.4 V
  • Rise Time
    50 to 150 µs
  • Wavelength
    880 to 940 nm
  • Emitter Material
    AlGaAs
  • Power Dissipation
    65 to 75 mW
  • Package Type
    Surface Mount
  • Aperture
    0.3 mm
  • Gap Width
    2.2 mm
  • Chip Material
    AlGaAs, Silicon
  • Emitter-Collector Voltage
    6 V
  • Leakage Current
    0.5 to 10 µA
  • Fall Time
    50 to 150 µs
  • On State Collector Current
    0.1 to 0.65 mA
  • Operating Current
    50 mA
  • pb Free
    Yes
  • Reverse Current
    10 µA
  • Reverse Voltage
    6 V
  • RoHS
    Yes
  • Collector Current
    20 mA
  • Collector-Dark Current
    1 to 100 nA
  • Collector-Emitter Voltage(Vce)
    35 V
  • Forward Voltage
    1.2 to 1.4 V

Environmental Conditions

  • Lead Soldering Temperature
    250 Degree C
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C

Physical Properties

  • Dimension
    4.5 x 2.6 x 2.9 mm
