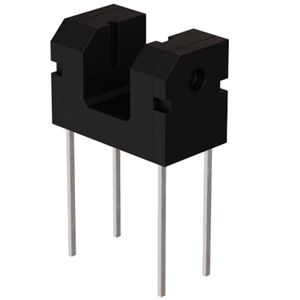

8ITR523D02SB0003

Photointerrupter by Edison Opto
17 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Edison Opto.

The 8ITR523D02SB0003 from Edison Opto is a Photointerrupter with Rise Time 10 µs, Wavelength 940 nm, Power Dissipation 65 to 75 mW, Gap Width 2 mm, Fall Time 10 µs. More details for 8ITR523D02SB0003 can be seen below.

Product Specifications

Product Details

  • Part Number
    8ITR523D02SB0003
  • Manufacturer
    Edison Opto

Applications

  • Applications
    Printer, Digital Camera, Optical switch

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Collector-Emitter Saturation Voltage
    0.4 V
  • Rise Time
    10 µs
  • Wavelength
    940 nm
  • Emitter Material
    AlGaAs
  • Power Dissipation
    65 to 75 mW
  • Package Type
    DIP
  • Aperture
    0.4 mm
  • Gap Width
    2 mm
  • Chip Material
    AlGaAs
  • Fall Time
    10 µs
  • pb Free
    Yes
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • RoHS
    Yes
  • Collector Current
    0.2 to 1 mA
  • Collector-Dark Current
    100 nA
  • Forward Voltage
    1.2 to 1.4 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -25 to 85 Degree C
  • Storage Temperature
    -30 to 100 Degree C

Physical Properties

  • Dimension
    4.9 x 2.7 x 3.3 mm

Technical Documents
Click to view more product details on manufacturer's website
