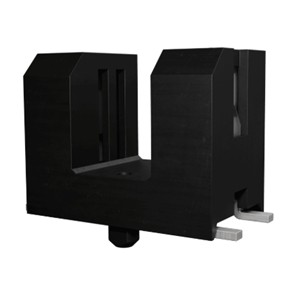

8ITR745S23FB0002

Photointerrupter by Edison Opto
17 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Edison Opto.

The 8ITR745S23FB0002 from Edison Opto is a Photointerrupter with Rise Time 15 to 150 µs, Wavelength 940 nm, Power Dissipation 65 to 75 mW, Gap Width 3 mm, Fall Time 15 to 150 µs. More details for 8ITR745S23FB0002 can be seen below.

Product Specifications

Product Details

  • Part Number
    8ITR745S23FB0002
  • Manufacturer
    Edison Opto
  • Description
    ITR745 dual-channel SMD type 940nm

Applications

  • Applications
    Automotive optical sensors, Accurate position sensor for encoder, Sensor for motion, speed and direction

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Collector-Emitter Saturation Voltage
    0.4 V
  • Rise Time
    15 to 150 µs
  • Wavelength
    940 nm
  • Power Dissipation
    65 to 75 mW
  • Package Type
    Surface Mount
  • Aperture
    0.4 mm
  • Gap Width
    3 mm
  • Emitter-Collector Voltage
    7 V
  • Fall Time
    15 to 150 µs
  • Operating Current
    20 mA
  • Operating Surge Current
    200 mA
  • pb Free
    Yes
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • RoHS
    Yes
  • Collector Current
    0.7 to 1.6 mA
  • Collector-Dark Current
    1 to 100 nA
  • Collector-Emitter Voltage(Vce)
    20 V
  • Forward Voltage
    1 to 1.4 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -40 to 80 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Dimension
    7 x 4 x 5.4 mm
