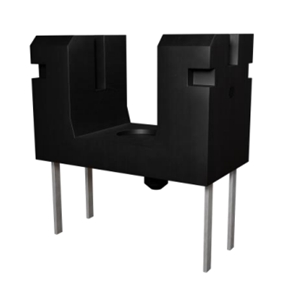

8ITR845DR4SB0001

Photointerrupter by Edison Opto
17 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Edison Opto.

The 8ITR845DR4SB0001 from Edison Opto is a Photointerrupter with Rise Time 15 µs, Wavelength 940 nm, Power Dissipation 65 to 75 mW, Gap Width 4 mm, Fall Time 10 µs. More details for 8ITR845DR4SB0001 can be seen below.

Product Specifications

Product Details

  • Part Number
    8ITR845DR4SB0001
  • Manufacturer
    Edison Opto
  • Description
    ITR845 IR reverse DIP type 940nm

Applications

  • Applications
    Printer, Copier, Scanner, Opto-electronic switch

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Collector-Emitter Saturation Voltage
    0.4 V
  • Rise Time
    15 µs
  • Wavelength
    940 nm
  • Emitter Material
    AlGaAs
  • Power Dissipation
    65 to 75 mW
  • Package Type
    DIP
  • Aperture
    0.45 mm
  • Gap Width
    4 mm
  • Chip Material
    AlGaAs, Silicon
  • Emitter-Collector Voltage
    5 V
  • Fall Time
    10 µs
  • On State Collector Current
    0.2 to 2.5 mA
  • Operating Current
    50 mA
  • pb Free
    Yes
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • RoHS
    Yes
  • Collector Current
    20 mA
  • Collector-Dark Current
    100 nA
  • Collector-Emitter Voltage(Vce)
    30 V
  • Forward Voltage
    1.27 to 1.6 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -25 to 80 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Dimension
    8 x 4.2 x 5.2 mm
