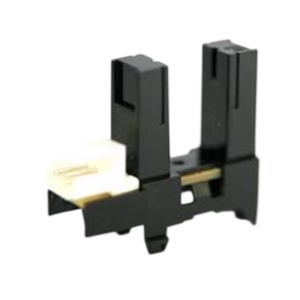

LG283D

Photointerrupter by KODENSHI
100 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to KODENSHI.

The LG283D from KODENSHI is a Photointerrupter with Power Dissipation 100 mW, Gap Width 8 mm. More details for LG283D can be seen below.

Product Specifications

Product Details

  • Part Number
    LG283D
  • Manufacturer
    KODENSHI

Applications

  • Applications
    Amusement machine, Copier, Printer, ATM, Vending machine, Exchanging machine

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Power Dissipation
    100 mW
  • Package Type
    Snap-in mount
  • Gap Width
    8 mm
  • Output Voltage
    0.2 to 4.5 V
  • Supply Current
    35 mA
  • Supply Voltage
    4.5 to 5.5 V

Environmental Conditions

  • Operating Temperature
    -20 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C
