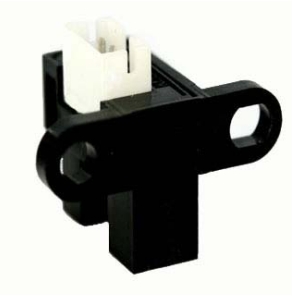

SG2A022

Photointerrupter by KODENSHI
100 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to KODENSHI.

The SG2A022 from KODENSHI is a Photointerrupter with Rise Time 200 µs, Wavelength 940 nm, Power Dissipation 100 mW, Gap Width 5 mm, Fall Time 70 µs. More details for SG2A022 can be seen below.

Product Specifications

Product Details

  • Part Number
    SG2A022
  • Manufacturer
    KODENSHI

Applications

  • Applications
    Amusement machine, Copier, Printer, ATM, Vending machine, Exchanging machine

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Collector-Emitter Saturation Voltage
    0.15 to 0.4 V
  • Rise Time
    200 µs
  • Wavelength
    940 nm
  • Power Dissipation
    100 mW
  • Package Type
    Screw Mount
  • Gap Width
    5 mm
  • Emitter-Collector Voltage
    5 V
  • Forward Current
    60 mA
  • Fall Time
    70 µs
  • Light Current
    0.5 to 5 mA
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • Collector Current
    40 mA
  • Collector-Dark Current
    1 to 100 nA
  • Collector-Emitter Voltage(Vce)
    30 V
  • Forward Voltage
    1.2 to 1.4 V

Environmental Conditions

  • Operating Temperature
    -20 to 85 Degree C
  • Storage Temperature
    -30 to 85 Degree C
