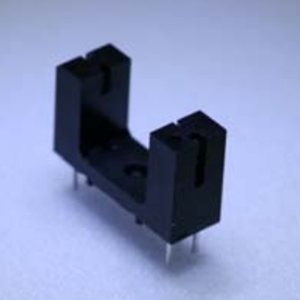

SG2C12

Photointerrupter by KODENSHI
100 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to KODENSHI.

The SG2C12 from KODENSHI is a Photointerrupter with Rise Time 570 to 1000 µs, Wavelength 940 nm, Power Dissipation 75 mW, Gap Width 7.2 mm, Fall Time 10 µs. More details for SG2C12 can be seen below.

Product Specifications

Product Details

  • Part Number
    SG2C12
  • Manufacturer
    KODENSHI

Applications

  • Applications
    Amusement machine, Copier, Printer, ATM, Auto vending machine, Exchanging machine

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Rise Time
    570 to 1000 µs
  • Wavelength
    940 nm
  • Emitter Material
    GaAs
  • Power Dissipation
    75 mW
  • Package Type
    PWB direct mount
  • Gap Width
    7.2 mm
  • Emitter-Collector Voltage
    5 V
  • Forward Current
    50 mA
  • Fall Time
    10 µs
  • Light Current
    0.35 to 2.1 mA
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • Collector Current
    20 mA
  • Collector-Dark Current
    1 to 100 nA
  • Collector-Emitter Voltage(Vce)
    30 V
  • Forward Voltage
    1.2 to 1.4 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -20 to 85 Degree C
  • Storage Temperature
    -30 to 100 Degree C
