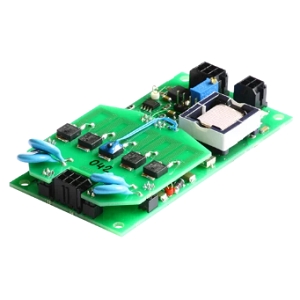

QBD-mini-1004-UP

Pockels Cell Driver by OEM Tech
76 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OEM Tech.

The QBD-mini-1004-UP from OEM Tech is a Pockels Cell Driver with Output Voltage Amplitude 0.4 to 1 kV, Supply Voltage(DC) 24 VDC, Fall Time <20 ns, Load Capacitance Up to 0.5 nF, Repetition Rate Up to 100 kHz. More details for QBD-mini-1004-UP can be seen below.

Product Specifications

Product Details

  • Part Number
    QBD-mini-1004-UP
  • Manufacturer
    OEM Tech
  • Description
    0.4 to 1 kV <20 ns Up to 100 kHz Up to 0.5 nF Bipolar, Push-pull Pockel cell driver

Applications

  • Application
    Cavity dumping, Q-switching

Electrical Specifications

  • Output Voltage Amplitude
    0.4 to 1 kV
  • Supply Voltage(DC)
    24 VDC
  • Fall Time
    <20 ns
  • Load Capacitance
    Up to 0.5 nF
  • HV Operation Voltage
    400 to 1000 V
  • Input Voltage
    24 VDC

General Parameters

  • Crystal Material
    Beta Barium Borate (BBO), Potassium Dihydrogen Phosphate (KD*P), Potassium Titanyl Phosphate (KTP)
  • Repetition Rate
    Up to 100 kHz
  • Rise Time
    <20 ns
  • Output Type
    Bi-Polar, Pull Up
  • Design Type
    PCB
  • Jitter
    10 ns
  • Propagation Delay
    1 µs
  • Recovery Time
    5 to 10 µs
  • Technology
    Q-Switching
  • Working Mode
    Push-Up

Physical Properties

  • Dimensions
    90 x 50 x 20 mm (L x W x H)
  • Weight
    0.1 kg

Environmental Conditions

  • Operating Temperature
    10 to 40 Degree C
  • Storage Temperature
    -20 to 60 Degree C
