STQBU-BT-3012

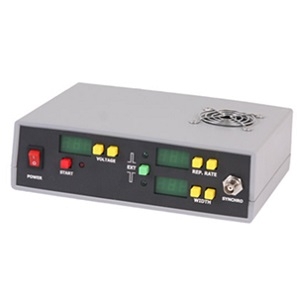

Pockels Cell Driver by Sintec Optronics
27 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

The STQBU-BT-3012 from Sintec Optronics is a Pockels Cell Driver with Output Voltage Amplitude 1.2 to 3 kV, Supply Voltage(DC) 24 VDC, Fall Time <20 ns, Load Capacitance Up to 0.5 nF, Repetition Rate Up to 50 kHz (CW), Up to 100 kHz (burst-mode). More details for STQBU-BT-3012 can be seen below.

Product Specifications

Product Details

  • Part Number
    STQBU-BT-3012
  • Manufacturer
    Sintec Optronics
  • Description
    1.2 to 3 kV <20 ns Up to 100 kHz, Up to 0.5 nF Pull-down, Push-pull Pockel cell driver

Electrical Specifications

  • Output Voltage Amplitude
    1.2 to 3 kV
  • Supply Voltage(DC)
    24 VDC
  • Fall Time
    <20 ns
  • Load Capacitance
    Up to 0.5 nF
  • Delay Time
    1 µs (100 ns in LJ-modification)
  • HV Power Supply
    110 to 230 VAC, 50 to 60 Hz
  • Input Current
    1 A
  • Input Frequency
    50 to 60 Hz
  • TTL Signal
    External

General Parameters

  • Crystal Material
    Lithium Niobate (LNB), Beta Barium Borate (BBO), Deuterated Potassium Dihydrogen Phosphate (DKDP)
  • Repetition Rate
    Up to 50 kHz (CW), Up to 100 kHz (burst-mode)
  • Pulse Width
    1 µs - DC
  • Rise Time
    <20 ns
  • Output Type
    Pull-down scheme, push-up scheme, repetition of external signal
  • Control Interface
    RS-232
  • Jitter
    10 ns (1 ns in LJ-modification)
  • Working Mode
    Pull-down scheme, push-up scheme, repetition of external signal

Physical Properties

  • Dimensions
    225 x 200 x 60 mm
  • Weight
    2 kg

Environmental Conditions

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Technical Documents
Click to view more product details on manufacturer's website
