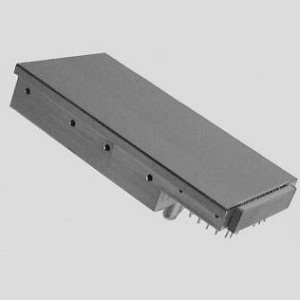

CCD44-82 (BI,NIMO)

CCD Image Sensor by Teledyne e2v
88 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teledyne e2v.

The CCD44-82 (BI,NIMO) from Teledyne e2v is a CCD Image Sensor with Spectral Range 350 to 900 nm. More details for CCD44-82 (BI,NIMO) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CCD44-82 (BI,NIMO)
  • Manufacturer
    Teledyne e2v
  • Description
    CCD44-82 Scientific CCD Sensor Back Illuminated, 2048 x 4096 Pixels, Non-Inverted Mode Operation

General Parameters

  • Pixels :
    8.4 MP
  • Resolution
    2048 (H) x 4096 (V)
  • Spectral Range
    350 to 900 nm
  • Pixel Size(H x V)
    15 x 15 µm
  • Package
    Metal buttable
  • Sensor Type
    Back Illuminated
  • Frame Architecture
    Full Frame, Frame Transfer
  • Dynamic Range
    2500:1
  • Charge Transfer Efficiency :
    Parallel, Serial 99.9995%, 99.9998%
  • Active Image Area
    30.7 x 61.4 mm
  • Data Rate
    1 MHz
  • Package Size
    31.7 x 66.6 mm
  • Peak Charge Storage
    150,000 to 200,000 ke-/pixel
  • Pixel Readout Frequency :
    20 to 1000 kHz
  • Readout Noise :
    2.5 e-rms
  • Sensitivity
    6.0 µV/e-
