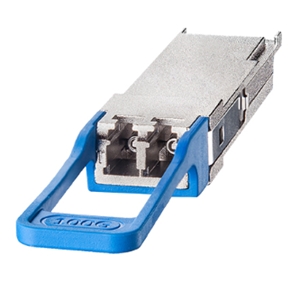

ALQ28-LR4-20

Fiber Optic Transceiver by 10Gtek Transceivers
344 more products from this company
Request Quote

Note: Your Quotation Request will be directed to 10Gtek Transceivers.

The ALQ28-LR4-20 from 10Gtek Transceivers is a Fiber Optic Transceiver with Data Rate 100 Gb/s, Wavelength 1269 to 1332 nm (LWDM), Distance/Reach 20 km, Output Power -2.5 to 4.5 dBm, Receiver Sensitivity -14.5 to 4.5 dBm. More details for ALQ28-LR4-20 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ALQ28-LR4-20
  • Manufacturer
    10Gtek Transceivers
  • Description
    1269 to 1332 nm LWDM QSFP Transceiver with -2.5 to 4.5 dBm Power

Applications

  • Applications
    Rack to Rack, Data Center, Infiniband QDR, DDR and SDR, 100G Ethernet

Connections & Interface

  • Connector
    MTP, MPO
  • Interface
    Ethernet

General Parameters

  • Data Rate
    100 Gb/s
  • Wavelength
    1269 to 1332 nm (LWDM)
  • Distance/Reach
    20 km
  • Output Power
    -2.5 to 4.5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    QSFP28
  • Receiver Sensitivity
    -14.5 to 4.5 dBm
  • Power Consumption
    3.5 W
  • Tx Power
    -2.5 to 4.5 dBm
  • Supply Voltage
    3.3 V

Temperature

  • Operating Temperature
    0 to 70 Degree C
Click to view more product details on manufacturer's website
