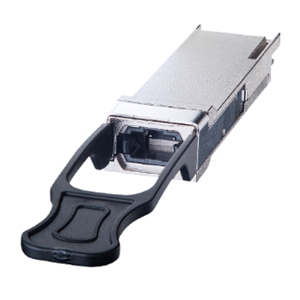

AMQ10-eSR4-M3

Fiber Optic Transceiver by 10Gtek Transceivers
344 more products from this company
Request Quote

Note: Your Quotation Request will be directed to 10Gtek Transceivers.

The AMQ10-eSR4-M3 from 10Gtek Transceivers is a Fiber Optic Transceiver with Data Rate 44.8 Gb/s, Wavelength 850 nm, Distance/Reach 300 m, Output Power -7.3 to 1 dBm, Receiver Sensitivity -9.9 dBm. More details for AMQ10-eSR4-M3 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AMQ10-eSR4-M3
  • Manufacturer
    10Gtek Transceivers
  • Description
    850 nm QSFP+ Transceiver with -7.3 to 1 dBm Power

Applications

  • Applications
    High-speed interconnects within and between switches, routers and transport equipment, Server-Server Clusters, Super-computing interconnections Proprietary backplanes, Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane,

Connections & Interface

  • Connector
    MTP, MPO

General Parameters

  • Data Rate
    44.8 Gb/s
  • Wavelength
    850 nm
  • Distance/Reach
    300 m
  • Output Power
    -7.3 to 1 dBm
  • Fiber Modes
    Multi Mode
  • Form Factor
    QSFP+
  • Receiver Sensitivity
    -9.9 dBm
  • Tx Power
    -7.3 to 1 dBm

Temperature

  • Operating Temperature
    0 to 70 Degree C
Click to view more product details on manufacturer's website
