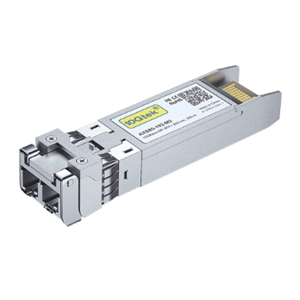

AXS13-192-M2

Fiber Optic Transceiver by 10Gtek Transceivers
344 more products from this company
Request Quote

Note: Your Quotation Request will be directed to 10Gtek Transceivers.

The AXS13-192-M2 from 10Gtek Transceivers is a Fiber Optic Transceiver with Data Rate 10.3 Gb/s, Wavelength 1310 nm, Distance/Reach <220 m, Output Power 0.5 to -6.5 dBm, Receiver Sensitivity -10.0 to 1.5 dBm. More details for AXS13-192-M2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AXS13-192-M2
  • Manufacturer
    10Gtek Transceivers
  • Description
    1310 nm SFP+ Transceiver with 0.5 to -6.5 dBm Power

Applications

  • Applications
    10GbE 10GBASE-SR, LR, ER, ZR, ZX, BX at 10.31 / 11.1Gbps, SDH/SONET at 10GBASE-LW, 9.953 Gb/s, 1~8XFC at 1.0625Gbps/2.125Gpbs/4.25Gpbs/8.5Gbps, 10G Networking, Storage, Telecommunications, 10G Switches, Routers, Network Interface Card(NICs)

Connections & Interface

  • Connector
    LC
  • Interface
    10G Ethernet or SDH/SONET

General Parameters

  • Data Rate
    10.3 Gb/s
  • Wavelength
    1310 nm
  • Distance/Reach
    <220 m
  • Output Power
    0.5 to -6.5 dBm
  • Fiber Modes
    Multi Mode
  • Form Factor
    SPF+
  • Receiver Sensitivity
    -10.0 to 1.5 dBm
  • Tx Power
    0.5 to -6.5 dBm
  • Supply Voltage
    3.3 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
Click to view more product details on manufacturer's website
