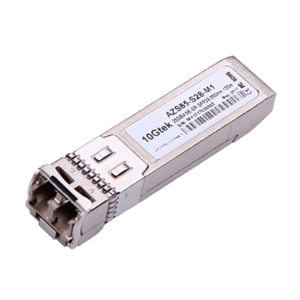

AZS85-S28-M1

Fiber Optic Transceiver by 10Gtek Transceivers
344 more products from this company
Request Quote

Note: Your Quotation Request will be directed to 10Gtek Transceivers.

The AZS85-S28-M1 from 10Gtek Transceivers is a Fiber Optic Transceiver with Data Rate 25.78 Gb/s, Wavelength 850 nm, Distance/Reach 100 m, Output Power -7.5 to 2.5 dBm, Receiver Sensitivity -10.3 dBm. More details for AZS85-S28-M1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AZS85-S28-M1
  • Manufacturer
    10Gtek Transceivers
  • Description
    850 nm SFP28 Transceiver with -7.5 to 2.5 dBm Power

Applications

  • Applications
    25.78 Gb/s single lane 100GE SR4, OUT4, 32GFC, CPRI Option 10

Connections & Interface

  • Connector
    Duplex LC

General Parameters

  • Data Rate
    25.78 Gb/s
  • Wavelength
    850 nm
  • Distance/Reach
    100 m
  • Output Power
    -7.5 to 2.5 dBm
  • Fiber Modes
    Multi Mode
  • Form Factor
    SFP28
  • Receiver Sensitivity
    -10.3 dBm
  • Tx Power
    -7.5 to 2.5 dBm
  • Supply Voltage
    3.3 V

Temperature

  • Operating Temperature
    0 to 70 Degree C
Click to view more product details on manufacturer's website
