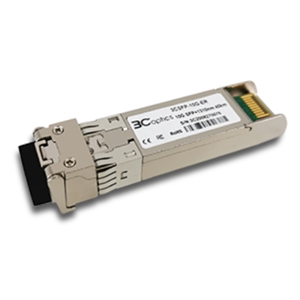

10G-SFP-SSR

Fiber Optic Transceiver by 3Coptics
97 more products from this company
Request Quote

Note: Your Quotation Request will be directed to 3Coptics.

The 10G-SFP-SSR from 3Coptics is a Fiber Optic Transceiver with Data Rate 10 Gb/s, Wavelength 850 nm (VCSEL), Distance/Reach 300 m, Output Power -7.3 to -1 dBm, Receiver Sensitivity -11.1 dBm. More details for 10G-SFP-SSR can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    10G-SFP-SSR
  • Manufacturer
    3Coptics
  • Description
    850 nm VCSEL Transceiver with -7.3 to -1 dBm Power

Connections & Interface

  • Interface
    SONET (OC-192)/SDH (STM64)

General Parameters

  • Data Rate
    10 Gb/s
  • Wavelength
    850 nm (VCSEL)
  • Distance/Reach
    300 m
  • Output Power
    -7.3 to -1 dBm
  • Form Factor
    SFP+
  • Receiver Sensitivity
    -11.1 dBm
  • Power Consumption
    <0.6 W
  • Tx Power
    -7.3 to -1 dBm

Temperature

  • Operating Temperature
    0 to 70 Degree C
Click to view more product details on manufacturer's website
