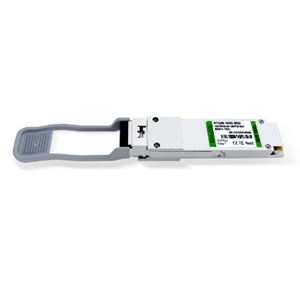

QSFP-100G-eCWDM4

Fiber Optic Transceiver by 3Coptics
97 more products from this company
Request Quote

Note: Your Quotation Request will be directed to 3Coptics.

The QSFP-100G-eCWDM4 from 3Coptics is a Fiber Optic Transceiver with Data Rate 100 Gb/s, Wavelength 1270 to 1610 nm (CWDM), Distance/Reach 10 km, Output Power -6.5 to 2.5 dBm, Receiver Sensitivity -13 dBm. More details for QSFP-100G-eCWDM4 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    QSFP-100G-eCWDM4
  • Manufacturer
    3Coptics
  • Description
    1270 to 1610 nm CWDM Transceiver with -6.5 to 2.5 dBm Power

Applications

  • Applications
    Data Center Internal Network, Data Center Interconnection and Metro Network.

Connections & Interface

  • Connector
    LC, MPO

General Parameters

  • Data Rate
    100 Gb/s
  • Wavelength
    1270 to 1610 nm (CWDM)
  • Distance/Reach
    10 km
  • Output Power
    -6.5 to 2.5 dBm
  • Form Factor
    QSFP28
  • Receiver Sensitivity
    -13 dBm
  • Power Consumption
    <3.5 W
  • Tx Power
    -6.5 to 2.5 dBm

Temperature

  • Operating Temperature
    0 to 70 Degree C
Click to view more product details on manufacturer's website
