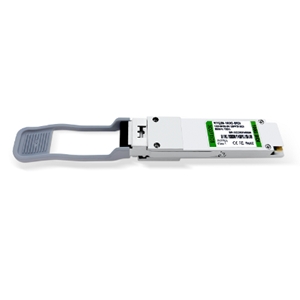

QSFP-100G-ER4-D

Fiber Optic Transceiver by 3Coptics
97 more products from this company
Request Quote

Note: Your Quotation Request will be directed to 3Coptics.

The QSFP-100G-ER4-D from 3Coptics is a Fiber Optic Transceiver with Data Rate 100 Gb/s, Wavelength 1294 to 1310 nm (LWDM, Distance/Reach 30 km, 40 km, Output Power 2.5 to 3.3 dBm, Receiver Sensitivity -15 dBm, -19 dBm. More details for QSFP-100G-ER4-D can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    QSFP-100G-ER4-D
  • Manufacturer
    3Coptics
  • Description
    1294 to 1310 nm LWDM Transceiver with 2.5 to 3.3 dBm Power

Applications

  • Applications
    Data Center Internal Network, Data Center Interconnection and Metro Network.

Connections & Interface

  • Connector
    LC, MPO

General Parameters

  • Data Rate
    100 Gb/s
  • Wavelength
    1294 to 1310 nm (LWDM
  • Distance/Reach
    30 km, 40 km
  • Output Power
    2.5 to 3.3 dBm
  • Form Factor
    QSFP28
  • Receiver Sensitivity
    -15 dBm, -19 dBm
  • Power Consumption
    <4.5 W
  • Tx Power
    2.5 to 3.3 dBm

Temperature

  • Operating Temperature
    0 to 70 Degree C
Click to view more product details on manufacturer's website
