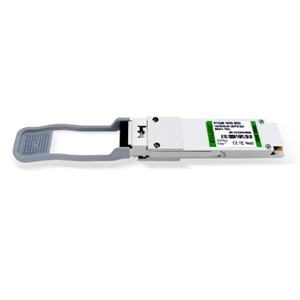

QSFP-100G-SR-BD

Fiber Optic Transceiver by 3Coptics
97 more products from this company
Request Quote

Note: Your Quotation Request will be directed to 3Coptics.

The QSFP-100G-SR-BD from 3Coptics is a Fiber Optic Transceiver with Data Rate 100 Gb/s, Wavelength 850 nm, 908 nm (VCSEL), Distance/Reach 100 m, Output Power -6 to 4 dBm, Receiver Sensitivity -7.9 dBm. More details for QSFP-100G-SR-BD can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    QSFP-100G-SR-BD
  • Manufacturer
    3Coptics
  • Description
    850 nm, 908 nm VCSEL Transceiver with -6 to 4 dBm Power

Applications

  • Applications
    Data Center Internal Network, Data Center Interconnection and Metro Network.

Connections & Interface

  • Connector
    LC, MPO

General Parameters

  • Data Rate
    100 Gb/s
  • Wavelength
    850 nm, 908 nm (VCSEL)
  • Distance/Reach
    100 m
  • Output Power
    -6 to 4 dBm
  • Form Factor
    QSFP28
  • Receiver Sensitivity
    -7.9 dBm
  • Power Consumption
    <3.5 W
  • Tx Power
    -6 to 4 dBm

Temperature

  • Operating Temperature
    0 to 70 Degree C
Click to view more product details on manufacturer's website
