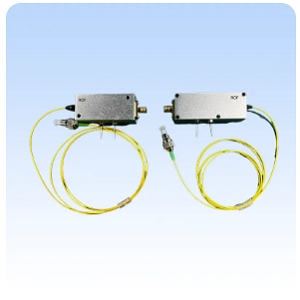

ROF-MINI

Fiber Optic Transceiver by Beijing Rofea Optoelectronics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Beijing Rofea Optoelectronics.

The ROF-MINI from Beijing Rofea Optoelectronics is a Fiber Optic Transceiver with Wavelength 1310 to 1550 nm, Output Power 2 to 4 mW. More details for ROF-MINI can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ROF-MINI
  • Manufacturer
    Beijing Rofea Optoelectronics
  • Description
    1310 to 1550 nm FC Single Mode Optical transceivers

Applications

  • Applications
    WiMAX / 4G LTE, 5G communication, Shipborne radio frequency distribution, Satellite earth station

Connections & Interface

  • Connector
    FC

General Parameters

  • Wavelength
    1310 to 1550 nm
  • Output Power
    2 to 4 mW
  • Fiber Modes
    Single Mode
  • Rx Power
    4 mW
  • Tx Power
    10 dBm
  • Supply Current
    100 mA
  • Supply Voltage
    9 to 15 V
  • Note
    HFC: 0.5 MHz, LFC: 1200 MHz, Frequency response: ±2 dB

Temperature

  • Operating Temperature
    -25 to 65 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Fiber Core Diameter
    9 to 125 µm
