FTLF8524P3BNL

Fiber Optic Transceiver by Coherent Corp.
18 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

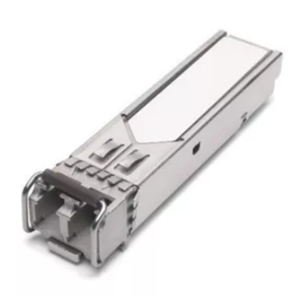

The FTLF8524P3BNL from Coherent Corp. is a Fiber Optic Transceiver with Data Rate 3.7 to 4.25 Gb/s, Wavelength 830 to 860 nm (Tx), 770 to 860 nm (Rx), Output Power -9 dBm, Receiver Sensitivity -12.1 dBm. More details for FTLF8524P3BNL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FTLF8524P3BNL
  • Manufacturer
    Coherent Corp.
  • Description
    4.25 Gb/s RoHS Compliant Short-Wavelength SFP Transceiver

Applications

  • Applications
    Wireless: OBSAI,CPRI, LTE, 4GFC application

Connections & Interface

  • Connector
    Duplex LC

General Parameters

  • Data Rate
    3.7 to 4.25 Gb/s
  • Wavelength
    830 to 860 nm (Tx), 770 to 860 nm (Rx)
  • Output Power
    -9 dBm
  • Fiber Modes
    Multi Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -12.1 dBm
  • Tx Power
    -9 dBm
  • Supply Current
    130 to 144 mA
  • Supply Voltage
    3.1 to 3.46 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -40 to 85 Degree C (Case)
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Fiber Core Diameter
    62.5 µm

Technical Documents
Click to view more product details on manufacturer's website
