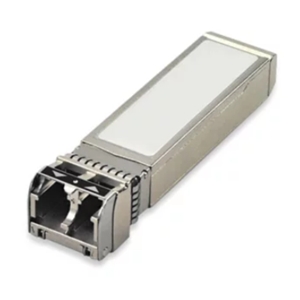

FTLF8538P5BCZ

Fiber Optic Transceiver by Coherent Corp.
18 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The FTLF8538P5BCZ from Coherent Corp. is a Fiber Optic Transceiver with Data Rate 10.3 to 25.78 Gb/s, Wavelength 840 to 860 nm, Output Power -10.3 to 3 dBm, Receiver Sensitivity -10.1 to -5.2 dBm. More details for FTLF8538P5BCZ can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FTLF8538P5BCZ
  • Manufacturer
    Coherent Corp.
  • Description
    25GBASE-SR Low Latency SFP+ Transceiver

Applications

  • Applications
    25GE SR, 100G SR4 fan out to 4x25GE SR, eCPRI

Connections & Interface

  • Connector
    Duplex LC

General Parameters

  • Data Rate
    10.3 to 25.78 Gb/s
  • Wavelength
    840 to 860 nm
  • Output Power
    -10.3 to 3 dBm
  • Fiber Modes
    Multi Mode
  • Form Factor
    SFP+
  • Receiver Sensitivity
    -10.1 to -5.2 dBm
  • Power Consumption
    1 W
  • Rx Power
    -10.3 to 3 dBm
  • Tx Power
    -8.4 to 2.4 dBm
  • Supply Current
    290 mA
  • Supply Voltage
    3.15 to 3.46 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C (Case)
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Fiber Core Diameter
    50 µm
