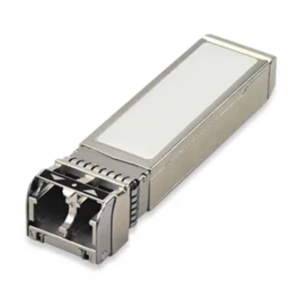

FTLF8540P4BCL

Fiber Optic Transceiver by Coherent Corp.
18 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The FTLF8540P4BCL from Coherent Corp. is a Fiber Optic Transceiver with Data Rate 25.78 Gb/s, Wavelength 840 to 860 nm, Output Power -11.9 to 3 dBm, Receiver Sensitivity -4.1 dBm. More details for FTLF8540P4BCL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FTLF8540P4BCL
  • Manufacturer
    Coherent Corp.
  • Description
    25.78Gb/s RoHS Compliant Extended Short Wavelength SFP28 Transceiver

Applications

  • Applications
    25.78 Gb/s single lane 100GE SR4, 25.78 Gb/s single lane 100GE eSR4 in the break out application

Connections & Interface

  • Connector
    Duplex LC

General Parameters

  • Data Rate
    25.78 Gb/s
  • Wavelength
    840 to 860 nm
  • Output Power
    -11.9 to 3 dBm
  • Fiber Modes
    Multi Mode
  • Form Factor
    SFP+
  • Receiver Sensitivity
    -4.1 dBm
  • Power Consumption
    1.2 W
  • Rx Power
    -11.9 to 3 dBm
  • Tx Power
    -8.4 to 2.4 dBm
  • Supply Current
    350 mA
  • Supply Voltage
    3.15 to 3.46 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C (Case)
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Fiber Core Diameter
    50 µm

Technical Documents
Click to view more product details on manufacturer's website
