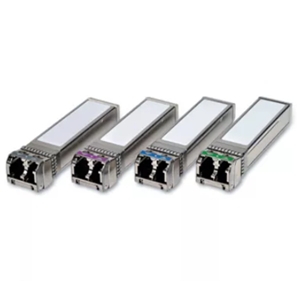

FTLX2471DC0XX

Fiber Optic Transceiver by Coherent Corp.
18 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The FTLX2471DC0XX from Coherent Corp. is a Fiber Optic Transceiver with Data Rate 9.95 to 10.5 Gb/s, Wavelength 1260 to 1600 nm, Distance/Reach up to 10 km, Output Power -3 to 3 dBm, Receiver Sensitivity -12.6 to -10.3 dBm. More details for FTLX2471DC0XX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FTLX2471DC0XX
  • Manufacturer
    Coherent Corp.
  • Description
    RoHS-6 Compliant CWDM 10Gb/s 10km Single Mode Datacom SFP+ Transceiver

Applications

  • Applications
    CWDM 10km links supporting:, 10GBASE-LR/LW 10G Ethernet, 1200-SM-LL-L 10G Fibre Channel
  • Standard Supported
    IEEE 802.3ae

Connections & Interface

  • Connector
    Duplex LC
  • Interface
    Gigabit Ethernet

General Parameters

  • Data Rate
    9.95 to 10.5 Gb/s
  • Wavelength
    1260 to 1600 nm
  • Distance/Reach
    up to 10 km
  • Output Power
    -3 to 3 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP+
  • Receiver Sensitivity
    -12.6 to -10.3 dBm
  • Power Dissipation
    <1 W
  • Rx Power
    0.5 dBm
  • Tx Power
    -3 to 3 dBm
  • Tx/Rx Component
    DFB(Tx)/PIN(Rx)
  • Supply Current
    200 to 285 mA
  • Supply Voltage
    3.14 to 3.46 V
  • Network Technology
    10GBASE_x005F_ xFFFE_LR/LW
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -5 to 70 Degree C (Case)
  • Storage Temperature
    -40 to 85 Degree C
