FTLX2672D327

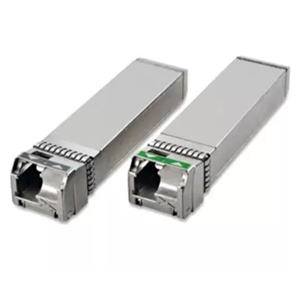

Fiber Optic Transceiver by Coherent Corp.
18 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The FTLX2672D327 from Coherent Corp. is a Fiber Optic Transceiver with Data Rate 1 to 11.3 Gb/s, Wavelength 1260 to 1280 nm (Tx), 1320 to 1340 nm (Rx), Distance/Reach up to 30 km, Output Power -14 to 5 dBm, Receiver Sensitivity -14 to -10.3 dBm. More details for FTLX2672D327 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FTLX2672D327
  • Manufacturer
    Coherent Corp.
  • Description
    RoHS-6 Compliant 10Gb/s 30km Single Mode Bidirectional SFP+ Transceiver

Applications

  • Applications
    10GBASE-LR/LW 10G Ethernet, 1000BASE-LX10 Gigabit Ethernet, 1200-SM-LL-L 10G Fibre Channel, 2.457 Gb/s CPRI, 3.072 Gb/s CPRI/LTE, 4.915 Gb/s CPRI/LTE, 6.144 Gb/s CPRI/OBSAI/LTE, 9.8304 Gb/s CPRI/LTE
  • Standard Supported
    IEEE 802.3ae

Connections & Interface

  • Connector
    Simplex LC
  • Interface
    CPRI, Gigabit Ethernet

General Parameters

  • Data Rate
    1 to 11.3 Gb/s
  • Wavelength
    1260 to 1280 nm (Tx), 1320 to 1340 nm (Rx)
  • Distance/Reach
    up to 30 km
  • Output Power
    -14 to 5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP+
  • Receiver Sensitivity
    -14 to -10.3 dBm
  • Power Dissipation
    <1 W
  • Rx Power
    -14 to 0.5 dBm
  • Tx Power
    -1 to 5 dBm
  • Tx/Rx Component
    DFB(Tx)/PIN(Rx)
  • Supply Current
    200 to 285 mA
  • Supply Voltage
    3.14 to 3.46 V
  • Network Technology
    10GBASE-LR/LW
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -40 to 85 Degree C (Case)
  • Storage Temperature
    -40 to 85 Degree C

Technical Documents
Click to view more product details on manufacturer's website
