CQB-904A07

Fiber Optic Transceiver by Huber+Suhner

Note: Your Quotation Request will be directed to Huber+Suhner.

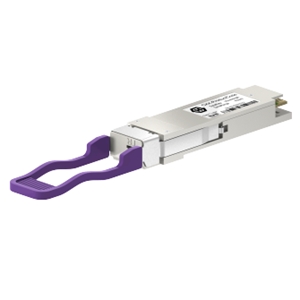

The CQB-904A07 from Huber+Suhner is a Fiber Optic Transceiver with Data Rate 103.125 Gb/s, Wavelength 1271 to 1331 nm, Distance/Reach up to 10 km, Output Power -7.7 to 4.5 dBm, Receiver Sensitivity <-6.1 to -4.1 dBm. More details for CQB-904A07 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CQB-904A07
  • Manufacturer
    Huber+Suhner
  • Description
    100G QSFP28 Bidi LR1 Transceiver

Connections & Interface

  • Connector
    Simplex LC/PC
  • Interface
    Ethernet

General Parameters

  • Data Rate
    103.125 Gb/s
  • Wavelength
    1271 to 1331 nm
  • Distance/Reach
    up to 10 km
  • Output Power
    -7.7 to 4.5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    QSFP28
  • Receiver Sensitivity
    <-6.1 to -4.1 dBm
  • Power Consumption
    <4.5 W
  • Rx Power
    -7.7 to 4.5 dBm
  • Tx Power
    -1.4 to 4.5 dBm
  • Tx/Rx Component
    DML(Tx)/PIN(Rx)
  • Supply Current
    <1360 mA
  • Supply Voltage
    3.13 to 3.47 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
