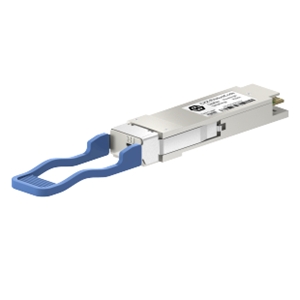

CQB-909A32

Fiber Optic Transceiver by Huber+Suhner

Note: Your Quotation Request will be directed to Huber+Suhner.

The CQB-909A32 from Huber+Suhner is a Fiber Optic Transceiver with Data Rate 103.125 Gb/s, Wavelength 1273.55 to 1309.14 nm, Distance/Reach up to 80 km, Output Power -30 to 7 dBm, Receiver Sensitivity <27 dBm. More details for CQB-909A32 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CQB-909A32
  • Manufacturer
    Huber+Suhner
  • Description
    100G QSFP28 Bidi ZR4 Transceiver

Connections & Interface

  • Connector
    Simplex LC/PC
  • Interface
    Ethernet

General Parameters

  • Data Rate
    103.125 Gb/s
  • Wavelength
    1273.55 to 1309.14 nm
  • Distance/Reach
    up to 80 km
  • Output Power
    -30 to 7 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    QSFP28
  • Receiver Sensitivity
    <27 dBm
  • Power Consumption
    <5.5 W
  • Rx Power
    -30 to -7 dBm
  • Tx Power
    1 to 7 dBm
  • Tx/Rx Component
    EML(Tx)
  • Supply Current
    <1585 mA
  • Supply Voltage
    3.13 to 3.47 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
