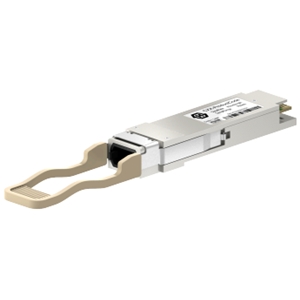

CQM-917A04

Fiber Optic Transceiver by Huber+Suhner
99 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Huber+Suhner.

The CQM-917A04 from Huber+Suhner is a Fiber Optic Transceiver with Data Rate 103.125 Gb/s, Wavelength 840 to 860 nm, Distance/Reach up to 100 m, Output Power -8.4 to 2.4 dBm, Receiver Sensitivity <-10 to -7.2 dBm. More details for CQM-917A04 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CQM-917A04
  • Manufacturer
    Huber+Suhner
  • Description
    100G QSFP28 SR4 Transceiver

Connections & Interface

  • Connector
    MTP, MPO-8/12
  • Interface
    Ethernet

General Parameters

  • Data Rate
    103.125 Gb/s
  • Wavelength
    840 to 860 nm
  • Distance/Reach
    up to 100 m
  • Output Power
    -8.4 to 2.4 dBm
  • Fiber Modes
    Multi Mode
  • Form Factor
    QSFP28
  • Receiver Sensitivity
    <-10 to -7.2 dBm
  • Power Consumption
    <3.5 W
  • Tx Power
    -8.4 to 2.4 dBm
  • Tx/Rx Component
    VCSEL(Tx)/ PIN(Rx)
  • Supply Current
    <1050 mA
  • Supply Voltage
    3.13 to 3.47 V
  • Network Technology
    100GBASE-SR4
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
