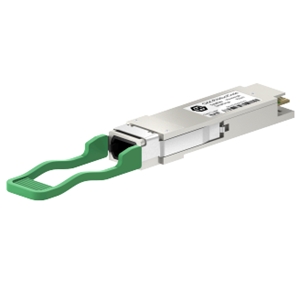

CQS-906A04

Fiber Optic Transceiver by Huber+Suhner
99 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Huber+Suhner.

The CQS-906A04 from Huber+Suhner is a Fiber Optic Transceiver with Data Rate 103.125 Gb/s, Wavelength 1260 to 1355 nm, Distance/Reach up to 2 km, Output Power -6 to 2 dBm, Receiver Sensitivity <-10.1 dBm. More details for CQS-906A04 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CQS-906A04
  • Manufacturer
    Huber+Suhner
  • Description
    100G QSFP28 PIR4 Transceiver

Connections & Interface

  • Connector
    MTP, MPO-8/12 (APC)
  • Interface
    Ethernet

General Parameters

  • Data Rate
    103.125 Gb/s
  • Wavelength
    1260 to 1355 nm
  • Distance/Reach
    up to 2 km
  • Output Power
    -6 to 2 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    QSFP28
  • Receiver Sensitivity
    <-10.1 dBm
  • Power Consumption
    <3.5 W
  • Tx Power
    -6 to 2 dBm
  • Tx/Rx Component
    DML(Tx)/PIN(Rx)
  • Supply Current
    <1060 mA
  • Supply Voltage
    3.13 to 3.47 V
  • Network Technology
    100GBASE-PIR4
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
