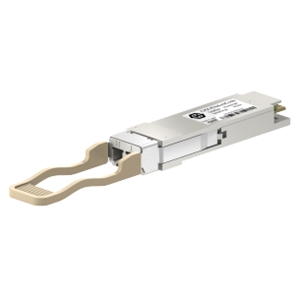

CQS-918A06

Fiber Optic Transceiver by Huber+Suhner
99 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Huber+Suhner.

The CQS-918A06 from Huber+Suhner is a Fiber Optic Transceiver with Data Rate 103.125 Gb/s, Wavelength 1527 to 1567 nm, Distance/Reach 2 to 100 km, Output Power -2 to 4 dBm, Receiver Sensitivity <-8 to -7 dBm. More details for CQS-918A06 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CQS-918A06
  • Manufacturer
    Huber+Suhner
  • Description
    100 Gb/s QSFP28 Single Lambda DWDM PAM4 ZR Transceiver

Connections & Interface

  • Connector
    Duplex LC/PC
  • Interface
    Ethernet

General Parameters

  • Data Rate
    103.125 Gb/s
  • Wavelength
    1527 to 1567 nm
  • Distance/Reach
    2 to 100 km
  • Output Power
    -2 to 4 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    QSFP28
  • Receiver Sensitivity
    <-8 to -7 dBm
  • Power Consumption
    <5.5 W
  • Rx Power
    >4 dBm
  • Tx Power
    -2 to 2 dBm
  • Tx/Rx Component
    EML(Tx)
  • Supply Current
    <1660 mA
  • Supply Voltage
    3.15 to 3.45 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Technical Documents
Click to view more product details on manufacturer's website
