CQS-929A07

Fiber Optic Transceiver by Huber+Suhner

Note: Your Quotation Request will be directed to Huber+Suhner.

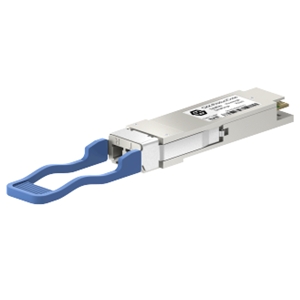

The CQS-929A07 from Huber+Suhner is a Fiber Optic Transceiver with Data Rate 103.125 to 111.809 Gb/s, Wavelength 1295.56 to 1309.14 nm, Distance/Reach up to 10 km, Output Power -4.3 to 4.5 dBm, Receiver Sensitivity <-10.6 to -8.6 dBm. More details for CQS-929A07 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CQS-929A07
  • Manufacturer
    Huber+Suhner
  • Description
    100G QSFP28 LR4 Transceiver

Connections & Interface

  • Connector
    Duplex LC/PC
  • Interface
    Ethernet

General Parameters

  • Data Rate
    103.125 to 111.809 Gb/s
  • Wavelength
    1295.56 to 1309.14 nm
  • Distance/Reach
    up to 10 km
  • Output Power
    -4.3 to 4.5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    QSFP28
  • Receiver Sensitivity
    <-10.6 to -8.6 dBm
  • Power Consumption
    <4 W
  • Tx Power
    -4.3 to 4.5 dBm
  • Tx/Rx Component
    DML(Tx)/PIN(Rx)
  • Supply Current
    <1200 mA
  • Supply Voltage
    3.13 to 3.47 V
  • Network Technology
    100GBASE-LR4
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
