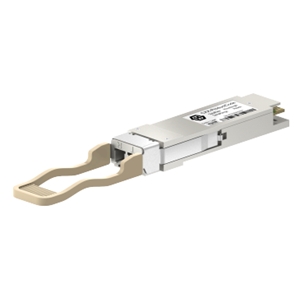

CQS-930A34

Fiber Optic Transceiver by Huber+Suhner
99 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Huber+Suhner.

The CQS-930A34 from Huber+Suhner is a Fiber Optic Transceiver with Data Rate 103.125 Gb/s, Wavelength 1295.56 to 1309.14 nm, Distance/Reach up to 100 km, Output Power 3 to 6.5 dBm, Receiver Sensitivity <-30 dBm. More details for CQS-930A34 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CQS-930A34
  • Manufacturer
    Huber+Suhner
  • Description
    100G QSFP28 eZR4 Transceiver

Connections & Interface

  • Connector
    Duplex LC/PC
  • Interface
    Ethernet

General Parameters

  • Data Rate
    103.125 Gb/s
  • Wavelength
    1295.56 to 1309.14 nm
  • Distance/Reach
    up to 100 km
  • Output Power
    3 to 6.5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    QSFP28
  • Receiver Sensitivity
    <-30 dBm
  • Power Consumption
    <6.5 W
  • Rx Power
    >5.5 dBm
  • Tx Power
    3 to 6.5 dBm
  • Tx/Rx Component
    EML(Tx)/PIN(Rx)
  • Supply Current
    <1.95 mA
  • Supply Voltage
    3.13 to 3.47 V
  • Network Technology
    100GBASE-ZR4
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
