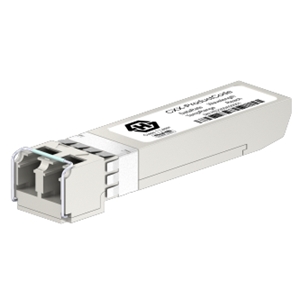

CSS-113A16

Fiber Optic Transceiver by Huber+Suhner
99 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Huber+Suhner.

The CSS-113A16 from Huber+Suhner is a Fiber Optic Transceiver with Data Rate 125 Mb/s, Wavelength 1260 to 1360 nm (Tx), 1260 to 1600 nm (Rx), Distance/Reach up to 2 km, Output Power -20 to -14 dBm. More details for CSS-113A16 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CSS-113A16
  • Manufacturer
    Huber+Suhner
  • Description
    100M SFP Transceiver

Connections & Interface

  • Connector
    Duplex LC/PC
  • Interface
    Ethernet

General Parameters

  • Data Rate
    125 Mb/s
  • Wavelength
    1260 to 1360 nm (Tx), 1260 to 1600 nm (Rx)
  • Distance/Reach
    up to 2 km
  • Output Power
    -20 to -14 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Power Consumption
    <1 W
  • Tx Power
    -20 to -14 dBm
  • Tx/Rx Component
    PIN(Rx)
  • Supply Current
    <300 mA
  • Supply Voltage
    3.13 to 3.47 V
  • Network Technology
    100BASE-FX
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
