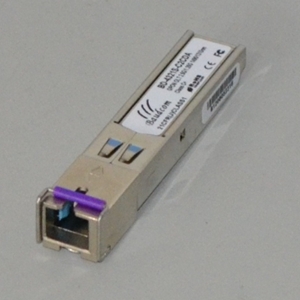

BD-4321S-C2CDA

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BD-4321S-C2CDA from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 1.25 Gb/s, 2.5 Gb/s, Wavelength 1480 to 1500 nm (Tx), 1260 to 1360 nm (Rx), Distance/Reach 20 km, Output Power 3 to 7 dBm, Receiver Sensitivity -30 dBm. More details for BD-4321S-C2CDA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BD-4321S-C2CDA
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1260 to 1500 nm Optical Transceiver with 3 to 7 dBm Power

Applications

  • Applications
    Gigabit Passive Optical Networks (G-PON) – OLT side

Connections & Interface

  • Connector
    SC
  • Interface
    DDMI, LVTTL

General Parameters

  • Data Rate
    1.25 Gb/s, 2.5 Gb/s
  • Wavelength
    1480 to 1500 nm (Tx), 1260 to 1360 nm (Rx)
  • Distance/Reach
    20 km
  • Output Power
    3 to 7 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -30 dBm
  • Supply Current
    500 mA
  • Supply Voltage
    3.13 to 3.47 V

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
