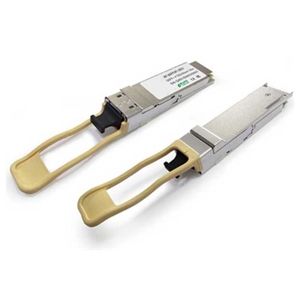

BD-QSFP28-CDS1

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BD-QSFP28-CDS1 from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 103.125 to 112 Gb/s, Wavelength 840 to 860 nm, Distance/Reach 70 m, 100 m, Output Power -8.4 to 2.4 dBm, Receiver Sensitivity -5.2 dBm. More details for BD-QSFP28-CDS1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BD-QSFP28-CDS1
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    840 to 860 nm Optical Transceiver with -8.4 to 2.4 dBm Power

Applications

  • Applications
    100GBASE-SR4, Infiniband QDR/DDR/SDR, 100G Datacom connections

Connections & Interface

  • Connector
    MTP/MPO
  • Interface
    Electrical Serial Interface

General Parameters

  • Data Rate
    103.125 to 112 Gb/s
  • Wavelength
    840 to 860 nm
  • Distance/Reach
    70 m, 100 m
  • Output Power
    -8.4 to 2.4 dBm
  • Fiber Modes
    Multi Mode
  • Form Factor
    QSFP
  • Receiver Sensitivity
    -5.2 dBm
  • Power Consumption
    3.5 W
  • Rx Power
    -10.3 to 2.4 dBm
  • Tx Power
    -8.4 to 2.4 dBm
  • Supply Voltage
    3.14 to 3.47 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
Click to view more product details on manufacturer's website
