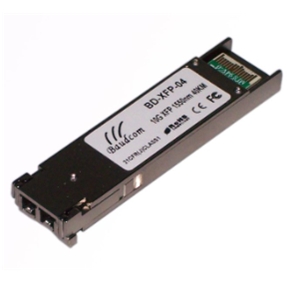

BD-XFP-04

Fiber Optic Transceiver by Shanghai Baudcom Communication Device

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BD-XFP-04 from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 9.95 to 11.3 Gb/s, Wavelength 1530 to 1565 nm, Distance/Reach Up to 40 km, Output Power -1 to 2 dBm, Receiver Sensitivity -16 dBm. More details for BD-XFP-04 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BD-XFP-04
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1530 to 1565 nm Optical Transceiver with -1 to 2 dBm Power

Applications

  • Applications
    10G BASE-ER/EW Ethernet, SONET OC-192/SDH STM-64 line card, Other optical links

Connections & Interface

  • Connector
    Duplex LC
  • Interface
    DDMI

General Parameters

  • Data Rate
    9.95 to 11.3 Gb/s
  • Wavelength
    1530 to 1565 nm
  • Distance/Reach
    Up to 40 km
  • Output Power
    -1 to 2 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    XFP
  • Receiver Sensitivity
    -16 dBm
  • Power Dissipation
    3.5 W
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
Click to view more product details on manufacturer's website
