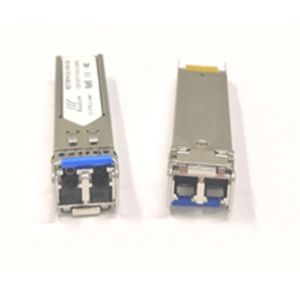

BDTRS813L1SD-20

Fiber Optic Transceiver by Shanghai Baudcom Communication Device

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BDTRS813L1SD-20 from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 10.3125 Gb/s, Wavelength 1290 to 1330 nm, Distance/Reach Up to 20 km, Output Power -5 to 0.5 dBm, Receiver Sensitivity -13 to -12 dBm. More details for BDTRS813L1SD-20 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BDTRS813L1SD-20
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1290 to 1330 nm Optical Transceiver with -5 to 0.5 dBm Power

Applications

  • Applications
    Ethernet, Fiber Channel

Connections & Interface

  • Connector
    LC
  • Interface
    LVPECL

General Parameters

  • Data Rate
    10.3125 Gb/s
  • Wavelength
    1290 to 1330 nm
  • Distance/Reach
    Up to 20 km
  • Output Power
    -5 to 0.5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP+
  • Receiver Sensitivity
    -13 to -12 dBm
  • Power Dissipation
    <1 W
  • Supply Voltage
    0 to 3.6 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
Click to view more product details on manufacturer's website
