BDTRS885L2MD-0.3

Fiber Optic Transceiver by Shanghai Baudcom Communication Device

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

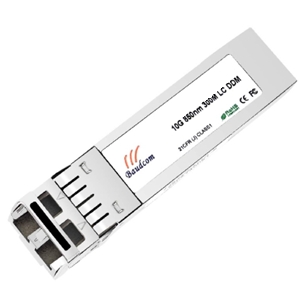

The BDTRS885L2MD-0.3 from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 10 Gb/s, Wavelength 840 to 860 nm, Distance/Reach 300 m, Output Power -6.5 to -1 dBm, Receiver Sensitivity -11.1 dBm. More details for BDTRS885L2MD-0.3 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BDTRS885L2MD-0.3
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    840 to 860 nm Optical Transceiver with -6.5 to -1 dBm Power

Applications

  • Applications
    10GBASE-SR at 10.3125Gbps, 10GBASE-SW at 9.953Gbps, Other optical links

Connections & Interface

  • Interface
    Gigabit Ethernet

General Parameters

  • Data Rate
    10 Gb/s
  • Wavelength
    840 to 860 nm
  • Distance/Reach
    300 m
  • Output Power
    -6.5 to -1 dBm
  • Fiber Modes
    Multi Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -11.1 dBm

Temperature

  • Operating Temperature
    -25 to 70 Degree C
