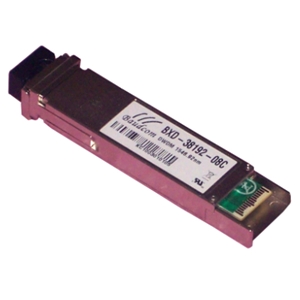

BXD-38192-08C

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BXD-38192-08C from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 9.95 to 11.3 Gb/s, Wavelength 1528.77 to 1563.86 nm, Distance/Reach 80 km, Output Power -1 to 4 dBm. More details for BXD-38192-08C can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BXD-38192-08C
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1528.77 to 1563.86 nm Optical Transceiver with -1 to 4 dBm Power

Applications

  • Applications
    SONET OC-192&SDH STM 64, 10G Ethernet, 80 km 10G Fiber Channel, DWDM Networks

Connections & Interface

  • Interface
    SONET OC-192, SDH STM, Ethernet

General Parameters

  • Data Rate
    9.95 to 11.3 Gb/s
  • Wavelength
    1528.77 to 1563.86 nm
  • Distance/Reach
    80 km
  • Output Power
    -1 to 4 dBm
  • Form Factor
    XFP
  • Power Dissipation
    3.5 W
  • Rx Power
    4 dBm (Input)
  • Tx Power
    -1 to 4 dBm
  • Supply Current
    500 to 750 mA
  • Supply Voltage
    3.13 to 5.25 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -5 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
