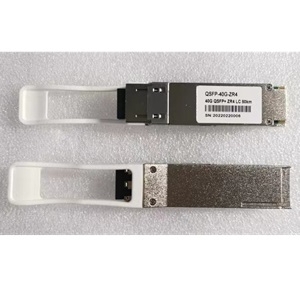

QSFP-40G-ZR4

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The QSFP-40G-ZR4 from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 40 Gb/s, Wavelength 1294.53 to 1310.19 nm, Distance/Reach 80 km, Output Power 3 to 7 dBm. More details for QSFP-40G-ZR4 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    QSFP-40G-ZR4
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1294.53 to 1310.19 nm Single Mode Optical Transceiver with 3 to 7 dBm Power

Applications

  • Applications
    Optical Communication applications

Connections & Interface

  • Connector
    Duplex LC
  • Interface
    2-wire serial, LVCMOS/LVTTL

General Parameters

  • Data Rate
    40 Gb/s
  • Wavelength
    1294.53 to 1310.19 nm
  • Distance/Reach
    80 km
  • Output Power
    3 to 7 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    QSFP
  • Rx Power
    -24 to -6 dBm
  • Supply Voltage
    3.3 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
