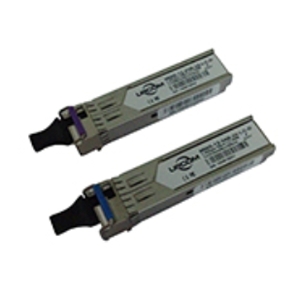

MWS-12-43B-20

Fiber Optic Transceiver by UPCOM TECHNOLOGY

Note: Your Quotation Request will be directed to UPCOM TECHNOLOGY.

The MWS-12-43B-20 from UPCOM TECHNOLOGY is a Fiber Optic Transceiver with Data Rate 1.25 Gb/s, Wavelength 1270 to 1600 nm, Distance/Reach 20 km, Output Power -9 to -3 dBm, Receiver Sensitivity -23 dBm. More details for MWS-12-43B-20 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MWS-12-43B-20
  • Manufacturer
    UPCOM TECHNOLOGY
  • Description
    1270 to 1600 nm BiDi SFP Transceiver with -9 to -3 dBm Power

Applications

  • Applications
    1000Base-LX Ethernet, Metro/Access Networks, 1xFibre Channel, Other Optical Links

Connections & Interface

  • Connector
    LC
  • Interface
    I2C

General Parameters

  • Data Rate
    1.25 Gb/s
  • Wavelength
    1270 to 1600 nm
  • Distance/Reach
    20 km
  • Output Power
    -9 to -3 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -23 dBm
  • Power Dissipation
    <1 W
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C (Commercial), -40 to 85 Degree C (Industrial), -5 to 85 Degree C (Extened)
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Fiber Core Diameter
    9/125 µm
