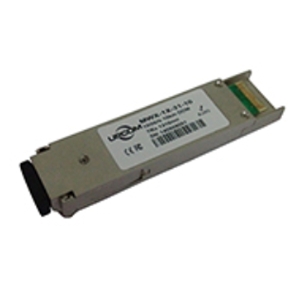

MWX-1X-31-10

Fiber Optic Transceiver by UPCOM TECHNOLOGY
1 more product from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to UPCOM TECHNOLOGY.

The MWX-1X-31-10 from UPCOM TECHNOLOGY is a Fiber Optic Transceiver with Data Rate 9.95 to 11.3 Gb/s, Wavelength 1260 to 1355 nm, Distance/Reach 10 km, Receiver Sensitivity -14.5 dBm. More details for MWX-1X-31-10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MWX-1X-31-10
  • Manufacturer
    UPCOM TECHNOLOGY
  • Description
    1260 to 1355 nm XFP Transceiver with 10 km Distance

Applications

  • Applications
    10GBASE-LR/LW Ethernet, SONET OC-192 /SDH, 1200-SM-LL-L 10G Fiber Channel, Other optical links

Connections & Interface

  • Connector
    LC
  • Interface
    2- wire serial

General Parameters

  • Data Rate
    9.95 to 11.3 Gb/s
  • Wavelength
    1260 to 1355 nm
  • Distance/Reach
    10 km
  • Fiber Modes
    Single Mode
  • Form Factor
    XFP
  • Receiver Sensitivity
    -14.5 dBm
  • Power Dissipation
    <1.5 W
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
