SPA-1HW1-2A1

Fiber Optic Transceiver by W-Optics Technology
74 more products from this company
Request Quote

Note: Your Quotation Request will be directed to W-Optics Technology.

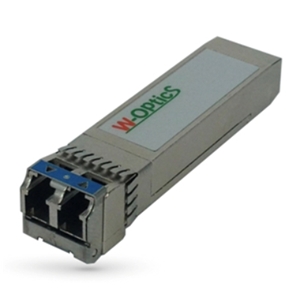

The SPA-1HW1-2A1 from W-Optics Technology is a Fiber Optic Transceiver with Data Rate 25 Gb/s, Wavelength 850 nm, Distance/Reach 100 m, Output Power -8.4 to 2.4 dBm, Receiver Sensitivity -10.3 dBm. More details for SPA-1HW1-2A1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SPA-1HW1-2A1
  • Manufacturer
    W-Optics Technology
  • Description
    850 nm Trasceiver with -8.4 to 2.4 dBm Power

Connections & Interface

  • Interface
    2- wire serial

General Parameters

  • Data Rate
    25 Gb/s
  • Wavelength
    850 nm
  • Distance/Reach
    100 m
  • Output Power
    -8.4 to 2.4 dBm
  • Fiber Modes
    Multi Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -10.3 dBm
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
Click to view more product details on manufacturer's website
